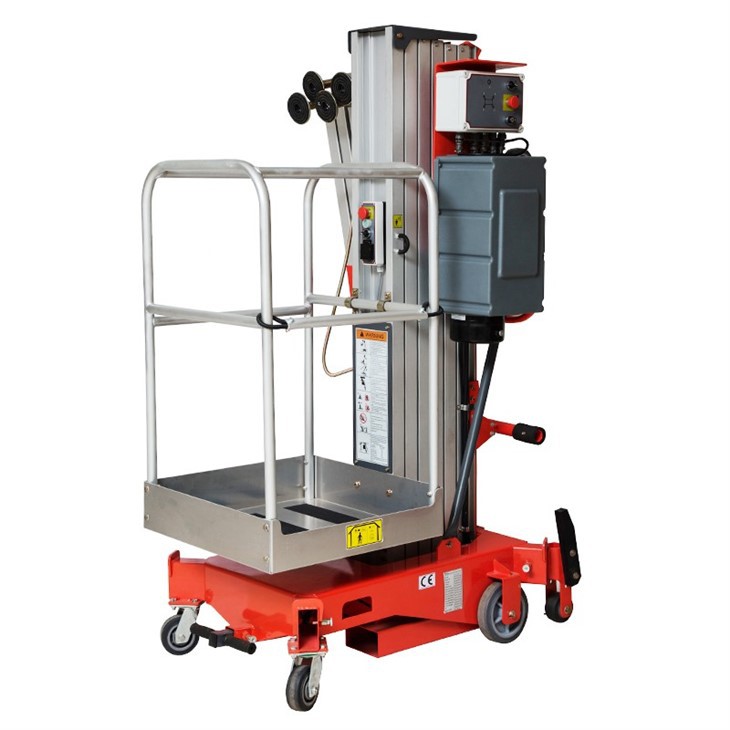

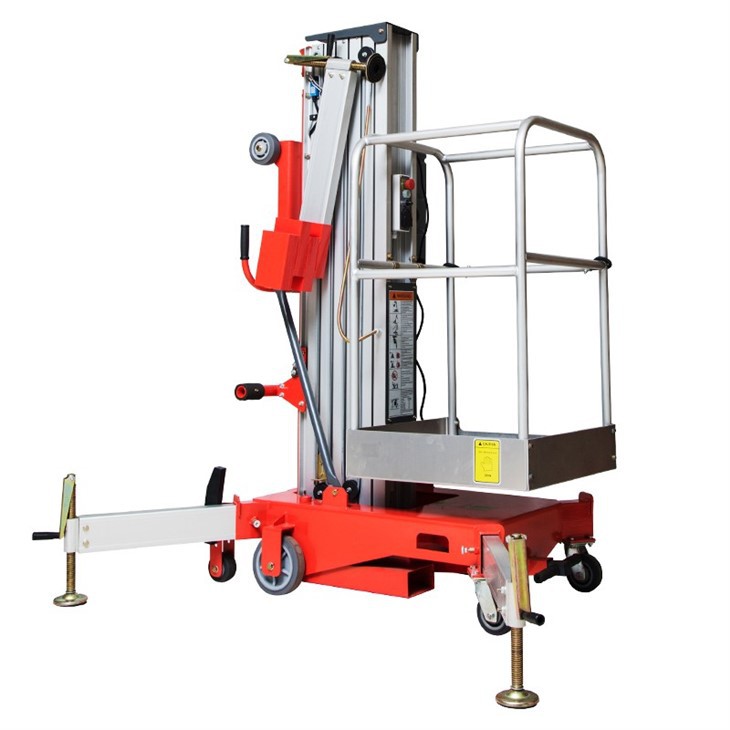

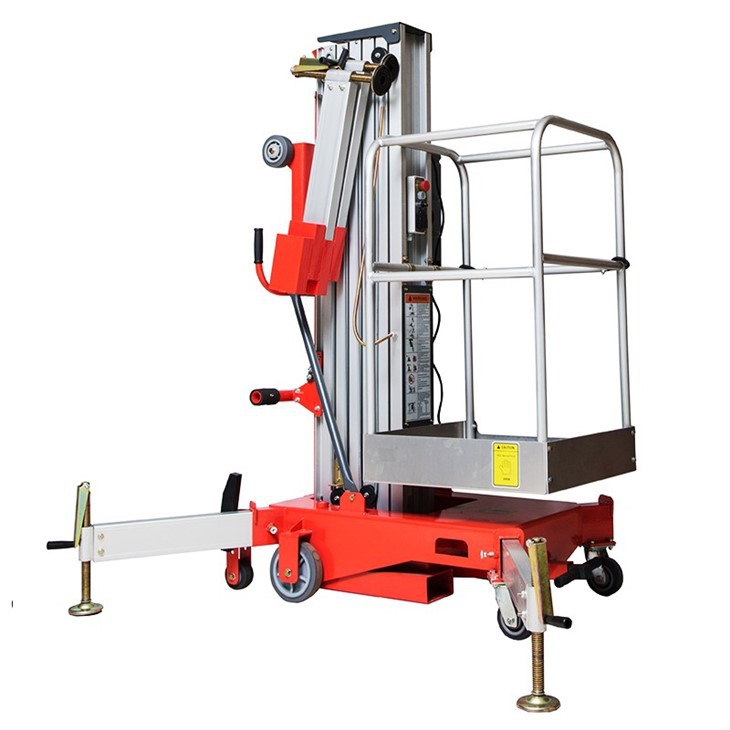

Aluminium Ib Mast Lift
Lub CATHAYLIFT Txhuas Ib Mast Lift yog ib qho kev txhawb nqa nqa zoo, uas muaj cov qauv siv high-end aluminium alloy. Nrog rau kev nqa qhov siab li ntawm 5 mus rau 12 meters thiab lub peev xwm ntawm 150 kg, qhov nqa no zoo meej rau kev siv sab hauv tsev thiab sab nraum zoov. Engineered rau kev yooj yim thiab kev ua tau zoo, nws tso cai rau ib leeg-tus neeg ua haujlwm yooj yim, ua rau nws zoo tagnrho rau kev txij nkawm, kev teeb tsa, thiab lwm yam dej num uas yuav tsum tau txhim khu kev ntseeg siab. Kev tsim kho muaj zog thiab cov neeg siv khoom siv tsim kom muaj kev nyab xeeb thiab yooj yim, muab cov cuab yeej zoo heev rau kev nkag mus rau thaj chaw siab nrog qhov yooj yim thiab raug.
Cov Khoom Paub meej
Advantages & Features:
Qhov zoo:
Kev ua haujlwm yooj yim:Tsim los rau kev ua haujlwm ib leeg-tus neeg yooj yim, qhov nqa no txhim kho kev ua tau zoo thiab tsim khoom, tso cai rau ib tus neeg los daws cov haujlwm tsis muaj zog.
Kev siv ntau yam:Haum rau kev siv sab hauv tsev thiab sab nraum zoov, nws yog qhov zoo tagnrho rau kev txij nkawm, kev teeb tsa, thiab lwm yam dej num uas yuav tsum tau txhim khu kev ntseeg siab.

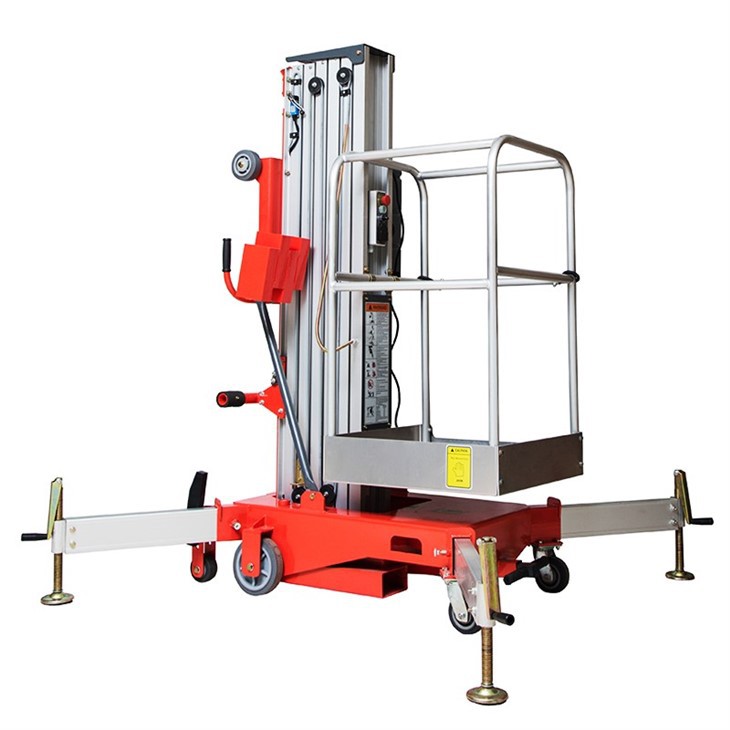

Txhim khu kev ruaj ntseg:Cov qauv outrigger nrog ob txoj kev tiv thaiv kom muaj kev nyab xeeb ntxiv, muab kev ruaj ntseg thiab kev ntseeg siab thaum siv.
Maneuverability:Lub teeb yuag thiab maneuverable heev, nqa tau yooj yim thauj thiab navigated los ntawm qhov qhib nqaim, yooj yim nkag mus rau ntau qhov chaw ua haujlwm.
Customizable Options:Muaj nyob rau hauv ob qho tib si phau ntawv thiab hluav taws xob versions, nws tuaj yeem tsim kho kom tau raws li cov kev xav tau tshwj xeeb, muab kev yooj yim rau kev ua haujlwm sib txawv.
Nta:
High-End Aluminium Alloy Kev Tsim Kho:Muab durability thiab robustness, kom ntseeg tau kev ua haujlwm ntev.
Lifting Qhov siab thiab Load Capacity:Nrog rau qhov siab ntawm 5 mus rau 12 meters thiab lub peev xwm ntawm 150 kg, nws ua tau raws li ntau yam kev xav tau ntawm kev nqa.
Stable thiab Smooth Lifting:Cov ntawv qhia tshwj xeeb lub log ntawm cov masts ua kom ruaj khov thiab du ua haujlwm.
Compact Structure:Ua kom yooj yim rau kev thauj mus los thiab hla dhau qhov qhib nqaim, ua kom yooj yim rau ntau qhov chaw.
Tus neeg siv-phooj ywg tsim:Ua kom yooj yim ntawm kev siv thiab txhim kho tag nrho kev nyab xeeb thiab yooj yim ntawm kev ua haujlwm.
Kev txiav txim tiag
|
Qauv No. |
CUP-5H |
CUP-6H |
CUP-8H |
CUP-9H |
CUP-10H |
CUP-12H |
|
|
Max. Platform Qhov siab |
5m |
6m |
8m |
9m |
10m |
12m |
|
|
Max Ua Haujlwm Qhov siab |
6m |
8m |
10m |
11m |
12m |
14m |
|
|
Load Capacity |
150 kg |
150 kg |
150 kg |
150 kg |
136kg ua |
120 kg |
|
|
Platform Loj |
0.67*0.66m |
||||||
|
Cov neeg nyob |
Ib tug neeg |
||||||
|
Outrigger Kev Pabcuam |
1.7*1.7m |
1.7*1.7m |
1.6*1.6m |
1.7*1.7m |
1.9*1.7m |
2.3*1.9m |
|
|
Zuag qhia tag nrho |
1.24*0.74*1.99m |
1.24*0.74*1.99m |
1.36*0.74*1.99m |
1.4*0.74*1.99m |
1.42*0.74*1.99m |
1.46*0.81*2.68m |
|
|
Net nyhav |
300 kg |
320kg ua |
345kg ua |
365kg ua |
3 85kg |
4 60kg |
|
|
Lub cev muaj zog |
0.75kw |
||||||
|
Kev xaiv |
DC |
12v |
|||||
|
DC Tsav |
1.5 kwm |
||||||
|
Charger |
12v15A |
||||||
