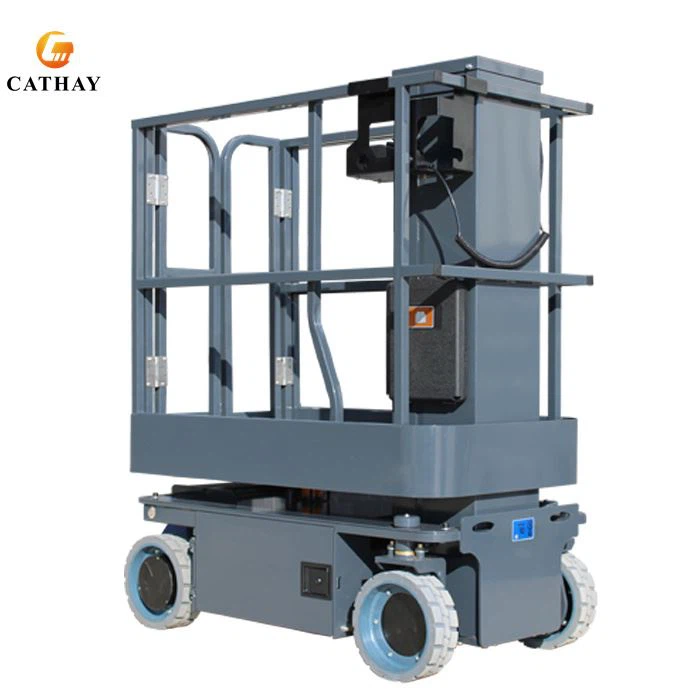

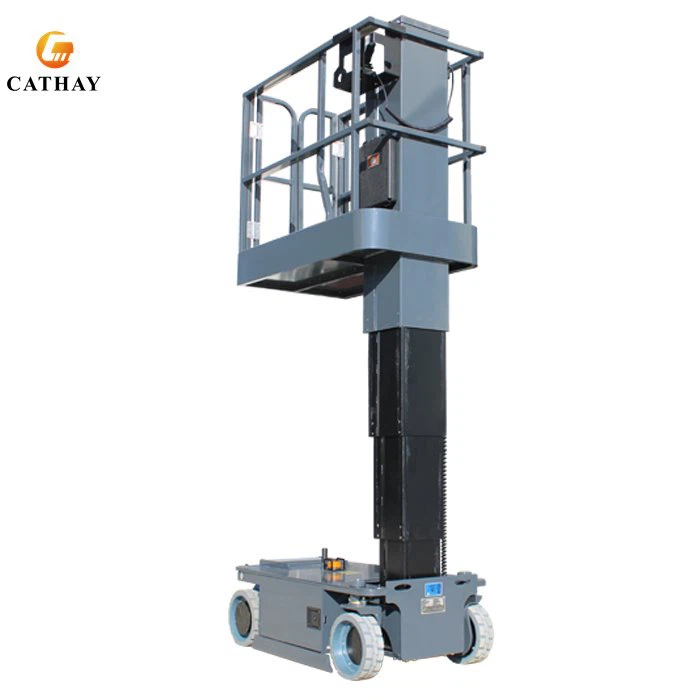

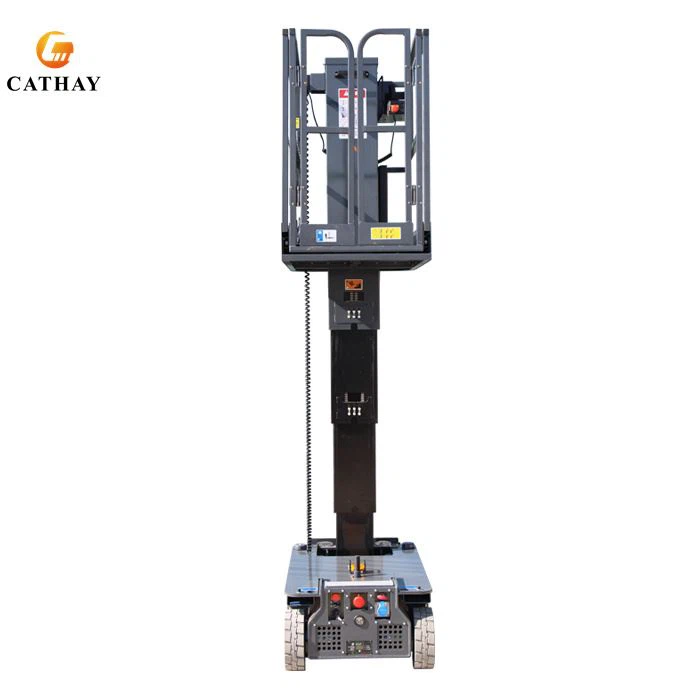

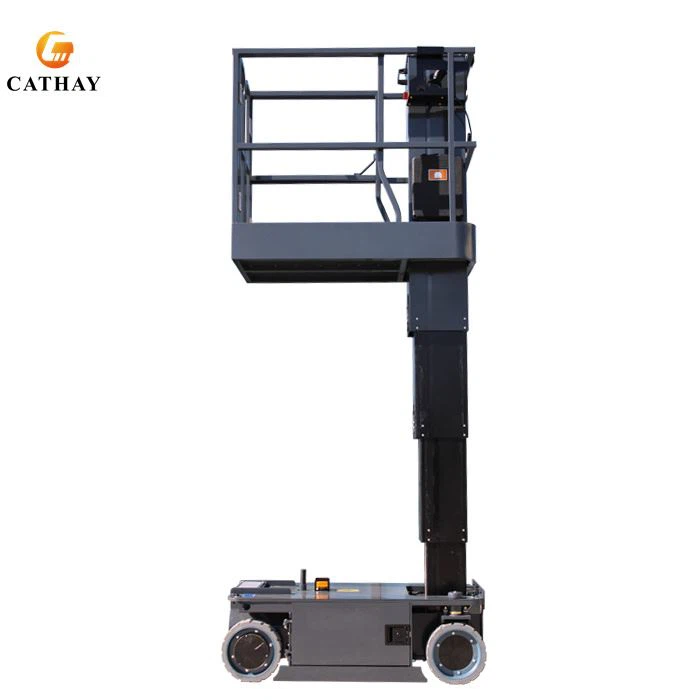

Tus txiv neej nqa sab hauv tsev yog ib qho khoom txuag hluav taws xob thiab ib puag ncig zoo. Nws hloov cov tsoos roj kheej kheej nrog lub zog thawb pas nrig. Nws yog roj-dawb. Nws muaj lub teeb yuag thiab kev ua haujlwm siab. Nws tuaj yeem siv ntau yam hauv tsev thiab lwm qhov chaw nqaim rau kev ua haujlwm siab. Kev nqa qhov siab ntawm cov khoom yog 3.6m ~ 6m, thiab qhov siab tshaj plaws thauj khoom tuaj yeem ncav cuag 227kg.
Qauv Hom No. | CSTAR-3600 | CSTAR-4800 | CSTAR-6000 |
Max. Platform Qhov siab | 3.6m | 4.8m | 6m |
Max Lifting Qhov siab | 5.6m | 6.8m | 8m |
Load Capacity | 227kg ua | 159kg ua | |
Extendable platform muaj peev xwm | 1 14kg | ||
Platform Loj | 1.3x0.7m | ||
Extendable platform ntev | 0.51m | ||
Log puag | 1.04m | ||
Inner Turning Radius | 0m | ||
Outer Turning Radius | 1.4m | ||
Ncig teb chaws ceev (Stowed) | 4km/h ib | ||
Mus ncig teb chaws ceev (Raised) | 1.1 km / h | ||
Up/down Ceev | 31/32 s. : kuv | 41.5 / 42 sec | 52/53 s. : kuv |
Qib Muaj peev xwm | 25 feem pua | ||
Tsav Tsheb | 305 x 100 mm | ||
Tsav Motors | 2 x 24VDC/{2}}.5KW | ||
Lifting Tsav | 24 DC / 1.3KW TSI | ||
Roj teeb | 2 X 12V / 100AH | ||
Charger | 24V/15A | ||
Qhov hnyav | 8 10kg | 9 80kg | 10 60kg |
Khoom Paub meej:
● Hluav taws xob thawb pas nrig (tsis muaj roj)
● Brushless DC lub cev muaj zog (Kev tu-dawb rau tag nrho lub tshuab)
● Tsis muaj suab nrov
● Zero emission
● Kev txuag hluav taws xob thiab kev tiv thaiv ib puag ncig
● Slexible, me me tig vojvoog, siab agility, siab maneuverability.
● Nruab nrog ntau yam kev nyab xeeb tsim
● Cov nqi ua haujlwm siab dua
Cov duab ntxaws:
Extensible Platform thiab hluav taws xob thawb pas nrig:
Qhov loj ntawm lub platform txuas ntxiv yog 0.51m, uas tuaj yeem xa mus sai sai rau qhov chaw ua haujlwm, uas yooj yim thiab nrawm. Lub tshuab hluav taws xob thawb lub tog raj kheej hloov lub tog raj kheej roj, uas muaj kev nyab xeeb thiab txhim khu kev qha, thiab cov saw hlau tau tsim nyob rau hauv, uas ua tiav cov qauv tsim tsis muaj roj.
Dual tswj qhov system:
Lub hauv paus tswj system yog nruab nrog qhov kub ceev qhovntsej thiaj tsis mob, lub zog hloov pauv, khawm nres thaum muaj xwm ceev thiab them nyiaj (tiv thaiv los ntawm rooj plaub xiav) built-in charger. Kev tswj tuav hauv lub platform, tswj kev faib ua feem, tsim kev tiv thaiv kev ua haujlwm tsis zoo, lub vijtsam tuaj yeem tso saib cov cai yuam kev, khawm horn tswj, thiab tswj lub tshuab kom txav mus los.
Pumping chaw nres tsheb ECU thiab qaij sensor:
Bucher Tsav, ruaj khov thiab txhim khu kev qha Electronic Control Unit (ECU) tswj lub tshuab los soj ntsuam txhua qhov kev ua, tshuaj xyuas lub tshuab ua txhaum, thiab cov cai txhaum cai yuav raug tso tawm ntawm lub tshuab hauv av tswj vaj huam sib luag.
Lub qaij sensor ntes cov theem hauv av. Thaum lub kaum sab xis yog siab dua 2 degrees thiab qhov siab nce mus txog 2m, lub tshuab yuav cia li kaw, thiab lub sijhawm no, kev nqis tes ua ntse yuav ua tiav. Xyuas kom tus neeg teb xov tooj muaj kev nyab xeeb.
Cov roj teeb uas tsis muaj hlau lead-acid tu
Piv nrog cov roj teeb ib txwm muaj, qhov zoo: tsis tas yuav ntxiv cov kua; tsawg dua corrosion rau lub davhlau ya nyob twg pawg taub hau thiab xov hlau; Muaj zog tiv thaiv overcharge; loj pib tam sim no; ntev zog cia lub sij hawm.
High elastic roj hmab zoo li qub grey log tsheb thiab hydraulic steering system:
Log log: Φ305 * 100mm, tsis muaj kab. Muaj cov qauv forklift qhov nyob rau sab kom tau raws li qhov xav tau ntawm kev thauj mus los ntev. Lub hydraulic steering system txhim kho qhov rhiab heev thaum txo kev siv hluav taws xob. Lub hwj chim steering pab kuj tuaj yeem hloov kho raws li qhov tsis xws li lub kaum sab xis thiab lub tsheb nrawm, ua rau nws ruaj khov dua.
Tsis siv neeg pothole tiv thaiv qhov system:
Kev tiv thaiv pothole muaj qhov hloov pauv sensor. Thaum lub pas dej tiv thaiv tsis qhib tag nrho, lub platform yuav cia li nres thaum nws nce mus rau qhov siab ntawm 2 meters thiab tsis tuaj yeem sawv.
Daim ntawv thov
Kev txiav txim tiag:
Cim npe nrov: sab hauv tsev neeg nqa
