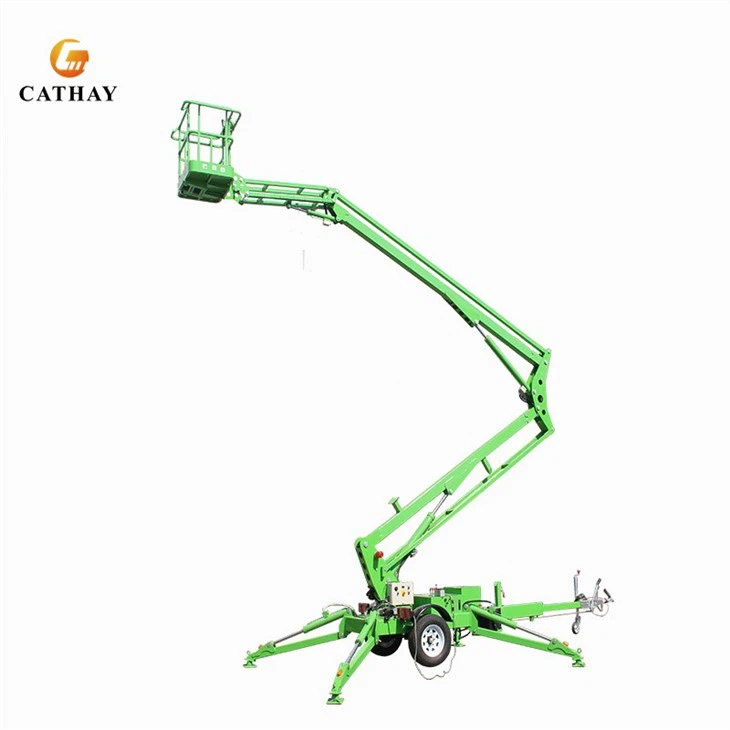

10m txog 20m Towable Trailer Boom Lift
Lub Cathaylift 10m mus rau 20m Towable Trailer Boom Lift muaj ntau yam nqa qhov siab li ntawm 10m mus rau 20m thiab qhov siab ua haujlwm ntawm 12m txog 22m, nrog lub peev xwm ntawm 200kg. Tsim los rau kev thauj mus los yooj yim, nws tuaj yeem rub los ntawm ntau lub tsheb yam tsis tas yuav muaj daim ntawv tsav tsheb ua lag luam. Nruab nrog hydraulic outriggers thiab tsis siv neeg leveling mechanism, nws ua kom muaj kev nyab xeeb thiab ruaj khov ua haujlwm ib puag ncig. Zoo tagnrho rau kev txij nkawm, kev tsim kho, thiab lwm yam dej num, qhov boom nqa no txhim kho kev ua haujlwm zoo thiab kev nyab xeeb, ua rau nws yog ib qho tseem ceeb rau cov kws tshaj lij uas xav tau kev nkag mus rau cov chaw ua haujlwm siab.
Cov Khoom Paub meej
Qhov zoo:
Ntau yam kev xaiv fais fab: Xaiv ntawm diesel, roj av, AC, lossis DC lub zog kom haum rau ntau qhov chaw ua haujlwm thiab xav tau.
Kev thauj mus los yooj yim: Tus qauv tsim qauv tso cai rau kev thauj mus los yooj yim los ntawm ntau lub tsheb yam tsis xav tau daim ntawv tsav tsheb ua lag luam, ua rau nws nqa tau yooj yim thiab yooj yim.
Kev nyab xeeb thiab ruaj ntseg: Hydraulic outriggers thiab ib qho tsis siv neeg leveling mechanism ua kom muaj kev nyab xeeb thiab txhim khu kev qha ua haujlwm, txhim kho cov neeg ua haujlwm kev nyab xeeb thaum ua haujlwm.
Kev ua haujlwm zoo: Lub kaw lus hydraulic tswj tag nrho thiab 360 degree nruam turntable rotation pab kom ceev thiab meej qhov chaw, tso cai rau cov dej num ua kom tiav zoo.
Siab Load Capacity: Nrog lub peev xwm thauj khoom ntawm 200kg, nws tuaj yeem ua kom haum rau ntau yam cuab yeej thiab cov khoom siv, txo qhov kev xav tau ntau yam kev mus ncig thiab ua kom cov khoom tsim tau.
Kev ua haujlwm dav dav: Kev nqa qhov siab ntawm 10m mus rau 20m thiab kev ua haujlwm siab ntawm 12m mus rau 22m muab kev ncav cuag, haum rau ntau yam kev siv xws li kev saib xyuas, kev tsim kho, thiab kev tshuaj xyuas.
Kev txiav txim tiag
|
Hom qauv |
CTA-10A |
CTA-12A |
CTA-14T |
CTA-16T |
CTA-18T |
CTA-20T |
|
Version |
Articulated |
Articulated |
Telescopic |
Telescopic |
Telescopic |
Telescopic |
|
Nqa qhov siab |
10M |
12M |
14M |
16M |
18M |
20M |
|
Ua haujlwm siab |
12M |
14M |
16M |
18M |
20M |
22M |
|
Load Capacity |
200 KG |
|||||
|
Platform loj |
0.9*0.7M |
|||||
|
Ua haujlwm vojvoog |
5.5M |
6.5M |
8.5M |
10.5M |
11M |
11M |
|
Net nyhav |
1855 KWG |
20 50 KG |
2500 KG |
2800 KG |
3000 KG |
3100 KG |
|
Qhov Loj (L * W * H) |
5.2*1.7*2.1M |
6.2*1.7*2.1M |
5.6*1.7*2.1M |
5.7*1.7*2.2M |
6.5*1.8*2.3M |
5.8*1.9*2.3M |
|
Lub hwj chim xaiv tau |
AC-hluav taws xob fais fab (Xi'an Tsav) |
|||||
|
Diesel Fais Fab Tsav (YSD Tsav) |
||||||
|
Gasoline Fais Fab (Honda Motor) |
||||||
|
DC roj teeb fais fab (Bucher Tsav) |
||||||
|
AC + Diesel / Gas Fais Fab (Dual Fais Fab) |
||||||
|
AC / Diesel / Gas + DC Fais Fab (Dual Power) |
||||||
|
Ntxiv yeem |
Kev sib txhuam lub log taug kev: (Tsis siv neeg txav) |
|||||
Cim npe nrov: 10m mus rau 20m towable trailer boom nqa
