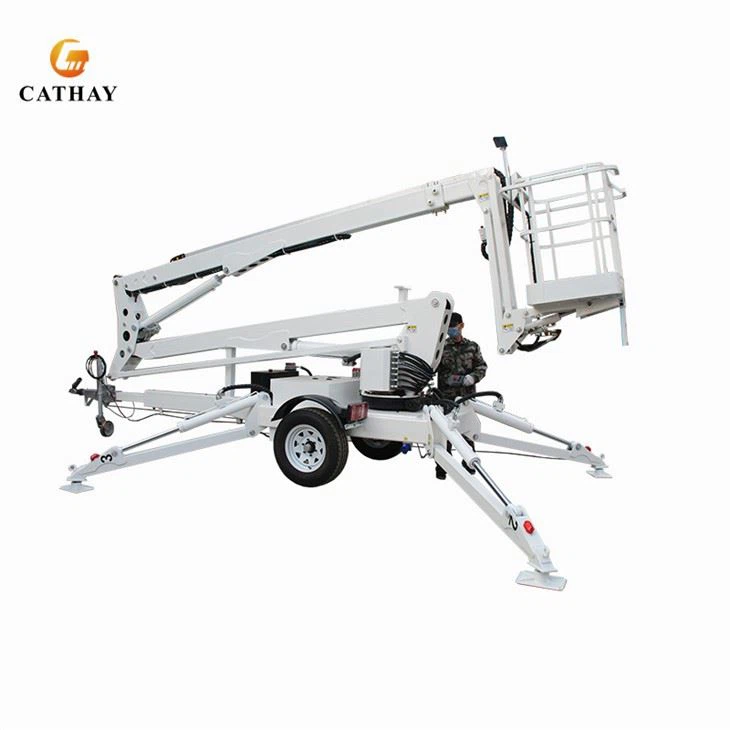

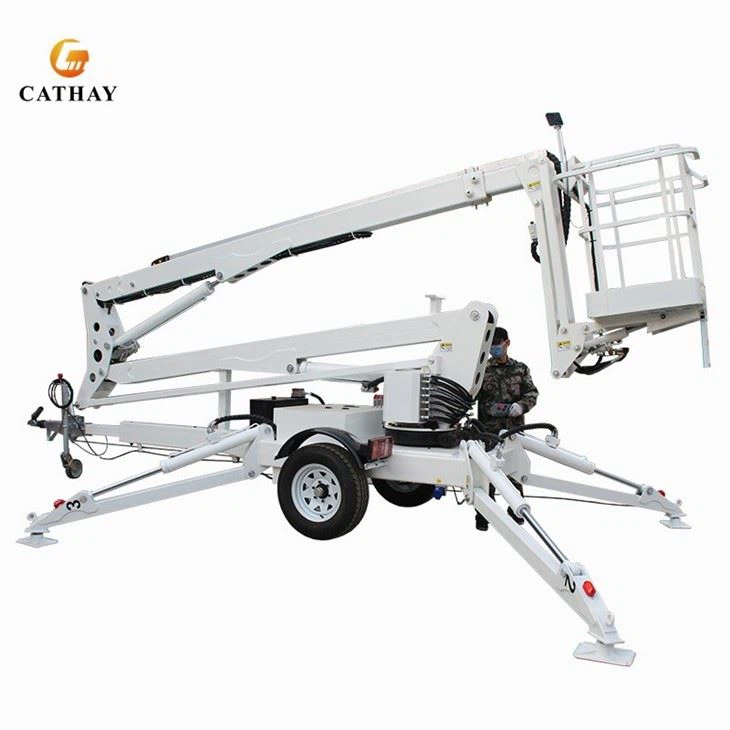

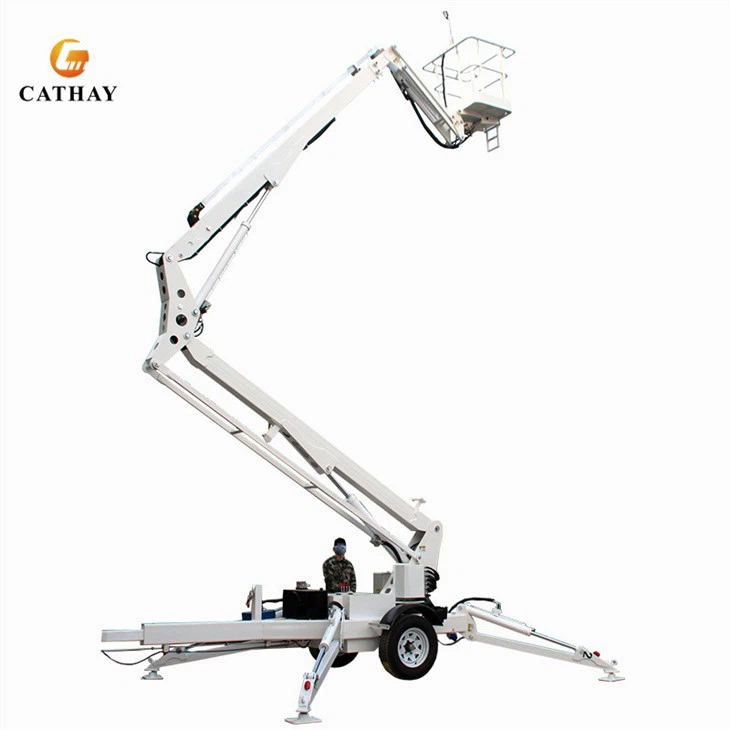

CATHAYLIFT-CTA hom towable boom nqa yog ua los ntawm high-strength steel phaj, tag nrho telescopic ua hauj lwm caj npab, built-in hydraulic tsav qauv, muaj zog tsav tsheb, compact qauv, zoo maneuverability, loj kev khiav hauj lwm ntau yam, ruaj khov thiab hloov tau yooj yim; Tsis siv neeg theem tshuab, Nrog kev tuav tswj kev ua haujlwm, lub platform ua haujlwm tuaj yeem tig tau 360 degree tsis tu ncua, lub phaj hauv qab yog ua los ntawm cov hlau tsis xeb, thiab lub thoob ua haujlwm tau muab tso rau tom qab, uas yooj yim rau cov neeg ua haujlwm nkag thiab tawm, thiab txo qhov nruab nrab ntawm lub ntiajteb txawj nqus ntawm lub tsheb; Kab laug sab-hom outriggers muaj qhov loj thiab ruaj khov, thiab cov outriggers yog nws tus kheej retracted thiab txuas, thiab yog nruab nrog outrigger flashing teeb, uas yog siv los qhia cov qauv ntawm lub outrigger thaum lub sij hawm ua hauj lwm thiab teeb lub teeb ceeb toom; nws tau nruab nrog lub zog hluav taws xob thaum muaj xwm ceev, uas tuaj yeem paub qhov kaw thaum muaj xwm ceev; cov hydraulic valve txawv teb kho cov kev khiav hauj lwm ceev ntawm lub boom. Lub tshuab hluav taws xob tswj tau tuaj yeem xaiv tau nruab nrog hauv av wireless chaw taws teeb tswj kev ua haujlwm.
Daim ntawv ceeb toom ua ntej ua haujlwm:
1. Nyeem thiab nkag siab txog cov lus qhia ua haujlwm rau lub tshuab no thiab paub txog txhua yam kev tswj hwm.
2. Tus neeg teb xov tooj yuav tsum paub txog cov haujlwm thiab cov lus qhia ntawm ntau yam kev khiav hauj lwm tuav, ua haujlwm thiab nqa txoj haujlwm sib cuam tshuam, ntsuas qhov load thiab lwm yam ntaub ntawv ua ntej ua haujlwm.
3. Lub tsheb saib xyuas qhov siab tsis yog rwb thaiv tsev thiab tsis muaj kev tiv thaiv hluav taws xob. Thov ua kom muaj kev nyab xeeb nyob deb ntawm cov khoom siv hluav taws xob thiab khoom siv. Yog tias lub tsheb siab siab kov cov kab hluav taws xob nyob hauv lub sijhawm siv, thov nyob deb ntawm hauv av lossis cov neeg ua haujlwm ntawm lub tsheb siab siab. Tsis txhob kov lossis ua haujlwm lub tshuab kom txog thaum lub zog raug txiav tawm.
4. Tsis txhob siv lub tsheb siab thaum muaj xob laim lossis cua daj cua dub sab nraum zoov.
5. Tsis txhob siv lub tsheb saib xyuas qhov siab tshaj plaws ua cov xaim hauv av thaum lub sijhawm ua haujlwm siab vuam.
6. Thaum lub dav hlau tu lub tsheb tuaj txog ntawm qhov chaw ua haujlwm thiab txav mus rau lub sijhawm ua haujlwm, nws yuav tsum tau lees paub tias tsis muaj ib tus neeg nyob rau hauv kev txav mus los uas yuav sib tsoo nrog lub dav hlau tsheb lossis nyob hauv txoj kev ntawm lub tsheb.
7. Thaum lub tsheb nqa thiab txo qis los yog lub turntable tau txav mus, nws yuav tsum tau lees paub tias tsis muaj neeg thiab teeb meem hauv qab no.
8. Tsis txhob siv lub boom los thawb lub tshuab lossis lwm yam khoom thaum lub tsheb thauj khoom siv dav hlau.
9. Cov neeg ua haujlwm ntawm lub platform yuav tsum hnav txoj siv sia thiab kaus mom hlau thiab siv lwm yam kev ntsuas kev nyab xeeb. Tsis txhob zaum, sawv lossis nce toj ntawm tus neeg saib xyuas ntawm lub platform, thiab yuav tsum sawv ruaj khov ntawm lub platform txhua lub sijhawm.
10. Nyob rau hauv lub xeev them nyiaj, lub tsheb nqa high-altitude yuav tsum nyob rau hauv lub xeev nres.
Hom qauv | CTA-10A | CTA-12A | CTA-14T | CTA-16T | CTA-18T | CTA-20T |
Version | Articulated | Articulated | Telescopic | Telescopic | Telescopic | Telescopic |
Nqa qhov siab | 10M | 12M | 14M | 16M | 18M | 20M |
Ua haujlwm siab | 12M | 14M | 16M | 18M | 20M | 22M |
Load peev | 200 KG | |||||
Platform loj | 0.9*0.7M | |||||
Ua haujlwm vojvoog | 5.5M | 6.5M | 8.5M | 10.5M | 11M | 11M |
Net nyhav | 1855 KWG | 2050 KG | 2500 KG | 2800 KG | 3000 KG | 3100 KG |
Qhov Loj (L * W * H) | 5.2*1.7*2.1M | 6.2*1.7*2.1M | 5.6*1.7*2.1M | 5.7*1.7*2.2M | 6.5*1.8*2.3M | 5.8*1.9*2.3M |
Txhawb nqa ceg Stride nrug (kab rov tav) | 3.0 M | 3.6 M | 3.6 M | 3.9 M | 3.9 M | 3.9 M |
Txhawb nqa ceg Stride Distance (Vertical) | 4.7 M | 4.7 M | 4.7 M | 4.9 M | 4.9 M | 4.9 M |
Cua Resistance Level | Tsawg dua los yog sib npaug li 5 | |||||
20 '/ 40' Thawv Loading Quantity | 20 '/ 1set | 20 '/ 1set | 20 '/ 1set | 20 '/ 1set | 20 '/ 1set | 20 '/ 1set |
40' / 3sets | 40' / 3sets | 40' / 3sets | 40' / 3sets | 40' / 3sets | 40' / 2sets | |
Lub hwj chim xaiv tau | AC-hluav taws xob fais fab (Xi'an Tsav) | |||||
Diesel Fais Fab Tsav (YSD Tsav) | ||||||
Gasoline Fais Fab (Honda Motor) | ||||||
DC roj teeb fais fab (Bucher Tsav) | ||||||
AC ntxiv rau Diesel / Gas Fais Fab (Dual Power) | ||||||
AC / Diesel / Gas ntxiv rau DC Fais Fab (Dual Power) | ||||||
Ntxiv yeem | Kev sib txhuam lub log taug kev: (Tsis siv neeg txav) | |||||
