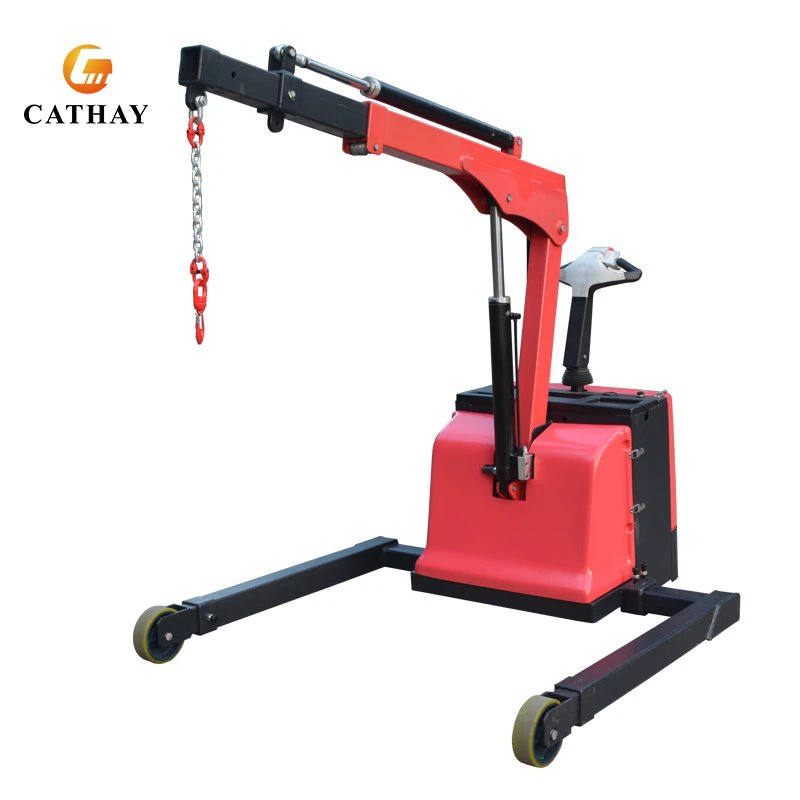

CATHAY Electric Floor cranes yog qhov zoo tshaj plaws rau kev nqa cov khoom hnyav hauv chaw ua haujlwm hauv khw, tab sis muaj ib txwm sib txawv thiab tshwj xeeb kev nqa khoom. CATHAY qhov tseeb CRANE rotatable lub ntsiab caj npab yog tsim los nrog ib tug tsis siv neeg muab tso rau hauv, uas khov kho xauv lub swivel caj npab kom ntseeg tau tias cov neeg siv khoom muaj kev nyab xeeb.
Hom qauv | CSEC-1200 | CSEC-1200A | CSEC-700 | CSEC-900R |
Kab rov tav Reach | 1280 plus 610 plus 610mm | 1280 plus 610 plus 610mm | 1220 plus 610 plus 610mm | 1280mm + 610mm + 610mm |
Load Capacity | 1200 kg | 1200kg (1280mm) | 700kg (1220mm) | 900kg (1280mm) |
Load Capacity (theem 1) | 600kg (1280 ~ 1890mm) | 600kg (1280 ~ 1890mm) | 400kg (1220 ~ 1830mm) | 450kg (1280 ~ 1890mm) |
Load Capacity (theem 2) | 300kg (1890 ~ 2500mm) | 300kg (1890 ~ 2500mm) | 200kg (1890 ~ 2440mm) | 250KG (1890 ~ 2500 hli) |
Max Lifting Qhov siab | 3 570mm | 3 540mm | 3 560mm | 3 180mm |
Min Lifting Qhov siab | 9 60mm | 9 35mm | 9 50mm | 14 10mm |
Retracted loj (W * L * H) | 1920 * 760 * 1600 hli | 1865 * 1490 * 1570 hli | 2595 * 760 * 1580mm | 2000 * 1854 * 1550 hli |
Arm Electric Rotation | / | / | / | 120 degree sab laug / sab xis |
Khoom Paub meej
Nta & qhov zoo:
● Lub kaw lus tsav tau txais American CURTIS stepless ceev tswj hluav taws xob tswj qhov system, uas yog hloov tau yooj yim hauv kev ua haujlwm, muaj kev nyab xeeb thiab txhim khu kev qha. Nruab nrog lub twj tso kua mis zoo thiab cov roj teeb uas tsis muaj kev tu ncua, txuag cov nqi kho tom qab thiab sijhawm.
● Cov khoom siv yog nruab nrog ib qho hluav taws xob xaim hlua nuv, uas daws tau tag nrho cov teeb meem uas qhov zoo ntawm kab rov tav ntawm tus nuv yog txo thaum lub boom nce.
● Lub rub-tawm kev txhawb nqa ceg tsim qauv tuaj yeem daws qhov teeb meem sib npaug zoo, thiab tib lub sijhawm ua rau cov khoom siv chassis ruaj khov, kev thauj khoom thauj khoom muaj kev nyab xeeb dua, thiab kev co amplitude me me.
● Cov txheej txheem taug kev tau txais 24V, thiab qhov nce thiab poob siv 380V / 50Hz peb-theem hluav taws xob. Vim tias cov kev xav tau ntawm cov neeg siv khoom sib txawv, peb tuaj yeem kho raws li cov kev xav tau tshwj xeeb.
● Lub roj teeb uas tsis muaj kev saib xyuas yog them tag nrho kom ua tiav ib hnub ua haujlwm, ua haujlwm nruab hnub, thiab them nyiaj thaum hmo ntuj. Lub ntse charger cia li tawm thiab sib npaug lub roj teeb voltage
● Qhov tsis muaj peev xwm nce toj siab ntawm cov cuab yeej yog siab li 10 feem pua, thiab lub peev xwm nce siab puv yog 5 feem pua. Tag nrho cov kev thauj mus los ceev yog 4km / h.
● Cov khoom siv kuj tau nruab nrog cov qauv taw qhia tshwj xeeb, uas ua rau lub ko taw nres thaum lub sijhawm ua haujlwm kom tsis txhob muaj kev sib tsoo hnyav thiab sib npaug ntawm cov khoom siv. yooj yim siv.
