Self-propelled ntsug nqaSiv nyob rau hauv Warehouse rau Order Picking

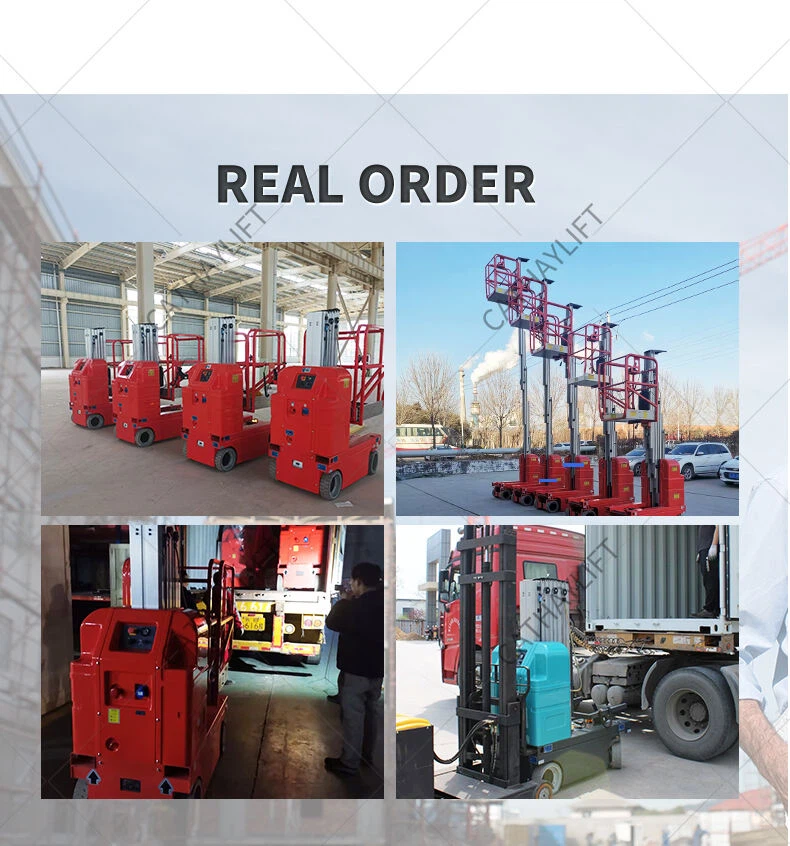

Cathayliftself-propelled ntsug mast nqamuab faib ua ob lub qauv ib leeg mast thiab ob mast, qhov siab tshaj lifting qhov siab tuaj yeem ncav cuag 9m. Vim nws qhov loj me me thiab lub cev compact, nws tuaj yeem yooj yim nkag mus rau ntau qhov chaw uas muaj qhov chaw txwv tab sis yuav tsum tau ua haujlwm siab. Cia kuv qhia rau koj ib qho ntawm cov neeg siv khoom tawm tswv yim los ntawm CR-6 qauv ib mast. Cov neeg siv khoom no xav tau ntau yam khoom siv los txiav txim vim qhov xav tau ntawm lub tsev khaws khoom, tab sis vim tias tus kheej tus kheej prolled order picker tsis tuaj yeem ua tau raws li qhov xav tau ntawm kev ua haujlwm siab, peb nug nws Peb pom zoo peb CR -6, qhov siab tshaj plaws ua haujlwm yog 8m, thiab qhov hnyav tuaj yeem ncav cuag 150kg. Tom qab tus neeg siv khoom xaj ib qho rau kev sim cov txiaj ntsig tiag tiag, nws tau muab cov lus qhia rau peb ntawm cov yeeb yaj kiab thiab duab. Cov neeg siv khoom txaus siab tshwj xeeb tshaj yog tias peb cov khoom muaj lub vojvoog tig ntawm 0mm, uas tuaj yeem paub txog kev tig dawb nyob hauv nruab nrab ntawm lub txee, uas txuag kev ua haujlwm zoo heev. Txij li thaum tus neeg siv khoom xav tau ntau dua ntawm cov cuab yeej no, nws nyuam qhuav xaj ntau chav. Ua tsaug ntau rau kev txhawb nqa thiab kev ntseeg siab ntawm cov neeg siv khoom.
Shandong Cathay Machinery Co., Ltd xav ua kom paub cov ntsiab lus ntawm peb cov khoom CR series, Peb vam tias cov khoom no tuaj yeem muab kev pab zoo rau koj qhov project ua haujlwm dav hlau:
● Lub cev muaj zog taug kev muaj 2 lub log pem hauv ntej, lub cev muaj zog ntawm 2.2KW, kev khiav hauj lwm voltage ntawm 24VDC, lub charger voltage ntawm 220VAC, thiab ob lub roj teeb 100AH ntawm lub tsheb.
● Ob lub log tsheb loj-elastic roj hmab grey, pem hauv ntej thiab nram qab, nrog txoj kab uas hla ntawm 305mm thiab dav ntawm 100mm.
● Lub telescopic guardrail tuaj yeem ncav cuag 480mm longitudinally.
● Hydraulic tswj pem hauv ntej-log steering, pem hauv ntej-log hluav taws xob tsav, fais fab 0.5KW*2
● Nws muaj lub luag haujlwm ntawm kev kuaj xyuas cov load, uas tsis tuaj yeem nce siab tshaj qhov ntsuas load, thiab muaj lub teeb ceeb toom (qhov kev ua haujlwm no tau raug kaw tom qab lub platform nqa los ntawm 200 lossis 400mm)
● Organic tshuab tilts sensing muaj nuj nqi: Tom qab lub platform nce mus txog 2 meters thaum lub hauv av qaij siab tshaj 2 degrees, lub sensor xa cov teeb liab, thiab nws tsuas yog yuav txo tau nyob rau lub sij hawm no. Thaum lub platform qhov siab poob qis dua 2 meters, lwm yam haujlwm tau rov qab los.
● Kev tiv thaiv lub cev muaj nuj nqi: Kev tiv thaiv hauv lub pas dej muaj qhov hloov pauv sensor. Thaum lub pas dej tiv thaiv tsis tau qhib tag nrho, lub platform yuav cia li nres thaum nws nce mus rau qhov siab ntawm 2 meters thiab tsis tuaj yeem tsa.
● Tom qab lub platform nqa thiab txo qis mus rau qhov siab ntawm 2 meters, nws yuav nres ntawm nws tus kheej. Koj yuav tsum tso tus kov kom rov ua haujlwm kom nqis. Qhov no yog ib tug anti-pinch tes
● Teem lub buzzer, strobe lub teeb, horn, thaum muaj xwm ceev poob cable, thiab waterproof charger plug
● Tswj vaj huam sib luag muaj nuj nqi:
1. Kev tswj xyuas qis qis-them nqi hluav taws xob, qhov taw qhia kev them nqi, qhov hloov pauv tseem ceeb (nce kev tswj rau sab laug sab laug, tawm rau qib, tswj qis qis rau sab laug), khawm nres xwm ceev, toggle hloov rau nce lossis nqis, lub zog taw qhia 3. Siv lub sijhawm ntsuas.
2. Kev tswj hwm sab saud yog kev sib koom ua ke ntawm tus kov thiab cov nyees khawm-koj tuaj yeem ua haujlwm ntawm tus kov kom nce, txo, tig, teeb tsa lub tshuab tsis, thiab lwm yam.
Lub vojvoog tig ntawm lub log pem hauv ntej yog me me, thiab koj tuaj yeem tig 360 degrees. Cov khoom tseem ceeb nyob rau hauv kev ua lag luam yog rear-wheel tsav. Yog tias nws yog lub log tsav tsheb, nws yuav muaj qhov sib npaug ntawm lub ntiajteb txawj nqus, vim tias lub cev muaj zog ntawm lub log tsav, suav nrog aluminium alloy thiab counterweight, nyob rau sab nraub qaum.
Tag nrho cov khoom siv ntawm cov khoom siv yog siv (Dingli). Lub roj teeb tau them tag nrho ib zaug, thiab nws tuaj yeem taug kev cuaj mais hauv qab lub nra hnyav. Tom qab ntawd, nws tuaj yeem nqa tau 73 zaug thiab tuaj yeem ua haujlwm tsis tu ncua rau tsib teev.
Yog xav paub ntxiv txog tus kheej-propelled ntsug mast nqa, txais tos hu rau peb.
