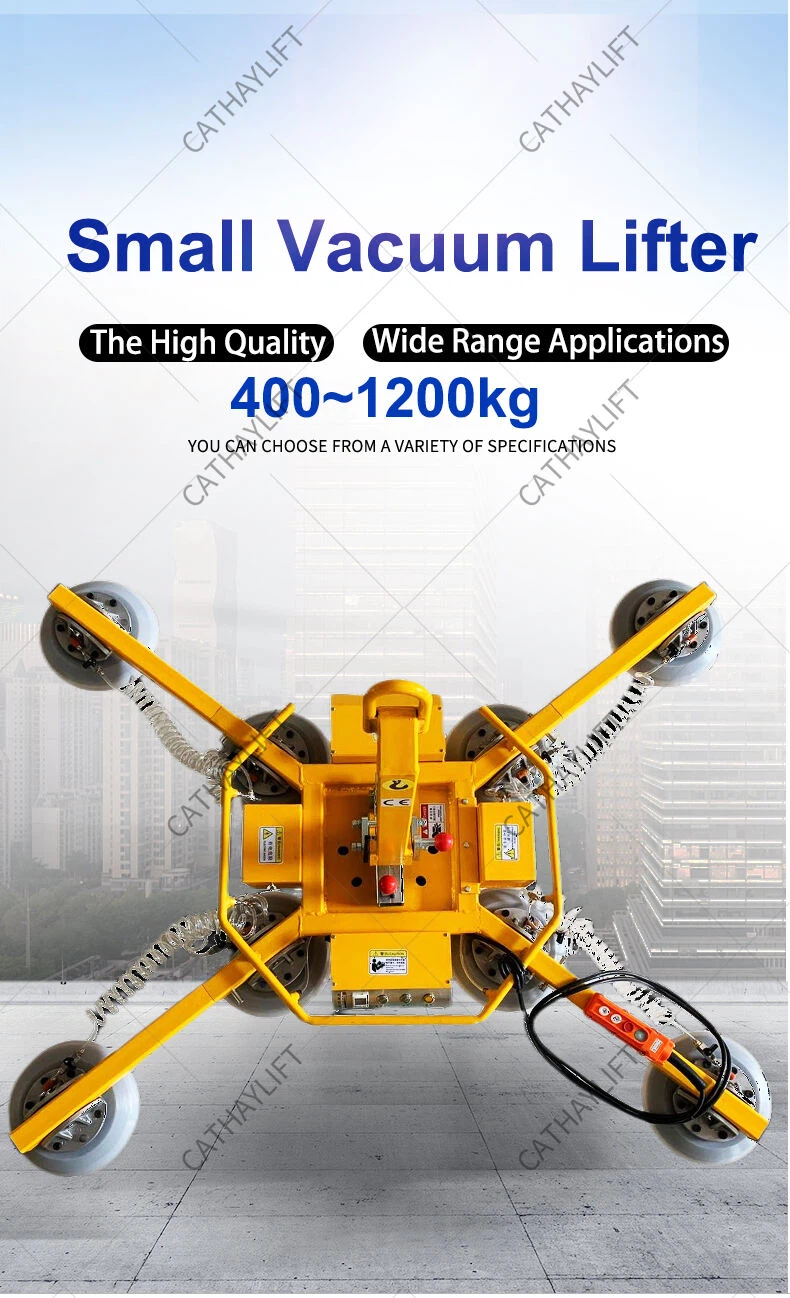

400kg ~ 1200kg Nqus khob Rau iav

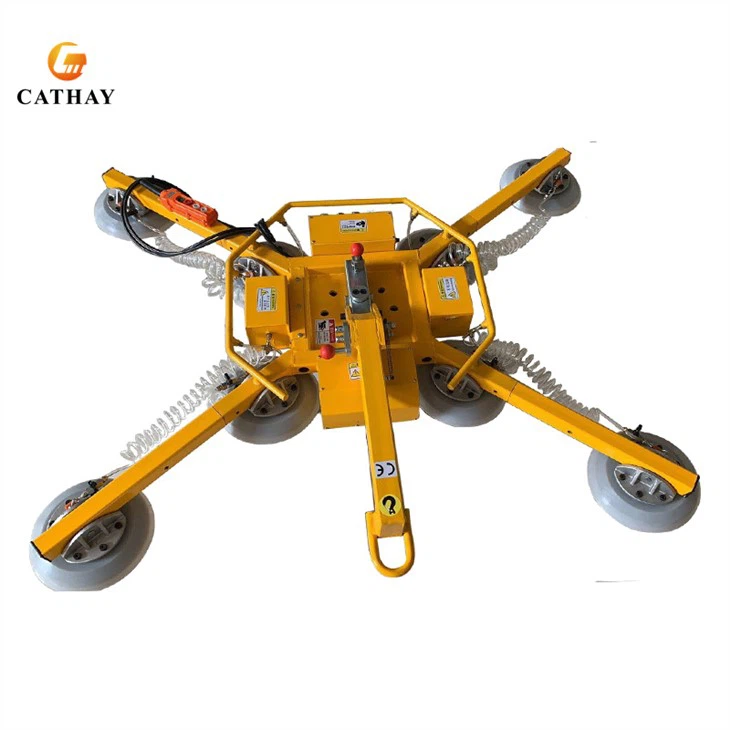

Cathaylift Vacuum Cups Raws li qhov loj thiab cov duab ntawm cov phaj sib txawv, koj tuaj yeem muab cov khob nqus dej thiab cov chaw teeb tsa ntawm lub khob nqus dej kom tau raws li ntau yam kev xav tau ua haujlwm. Qhov kev tsim no zoo heev txhim kho kev ua haujlwm ntawm cov khoom. Thiab tag nrho cov qauv ntawm cov khoom tau txais kev tsim cov kav dej ob chav cua, nruab nrog cov ntsuas ntsuas ntsuas, thiab cov cuab yeej ruaj khov ruaj khov kom ntseeg tau tias yuav tsis muaj kev phom sij hauv kev ua haujlwm.
|
Qauv |
XC-S400 |
XC-S600 |
XC-S800 |
XC-S1000 |
XC-S1200 |
|
|
Lifting peev |
kg |
400 |
600 |
800 |
1000 |
1200 |
|
Khob Qty |
/ |
4 |
6 |
8 |
10 |
12 |
|
Ib khob Diameter |
mm |
300 |
300 |
300 |
300 |
300 |
|
Ib khob muaj peev xwm |
kg |
100 |
100 |
100 |
100 |
100 |
|
Kev sib hloov |
/ |
360 degree phau ntawv tig |
||||
|
Tilting |
/ |
90 degree phau ntawv |
||||
|
Qhov hluav taws xob |
V |
DC 12 |
||||
|
Charger |
V |
AC220/110 kev cai |
||||
|
Qhov hnyav |
kg |
70 |
90 |
100 |
120 |
120 |
|
Sucker Ncej Loj |
mm |
850*750*300 |
1800*900*300 |
1760*1460*300 |
1900*1600*300 |
1900*1600*300 |
|
Extension Bar Length |
mm |
500 |
||||
|
Tswj System |
/ |
Integrated Control Txee thiab Wired Remote Control |
||||
|
Zuag qhia tag nrho |
mm |
1230 * 910 * 390mm, ntim los ntawm lub thawv ntoo |
||||
|
Qhov hnyav tag nrho |
kg |
97 |
110 |
123 |
150 |
163 |
Cov Khoom Paub meej
Daim ntawv thov
Cim npe nrov: lub tshuab nqus tsev khob rau iav
