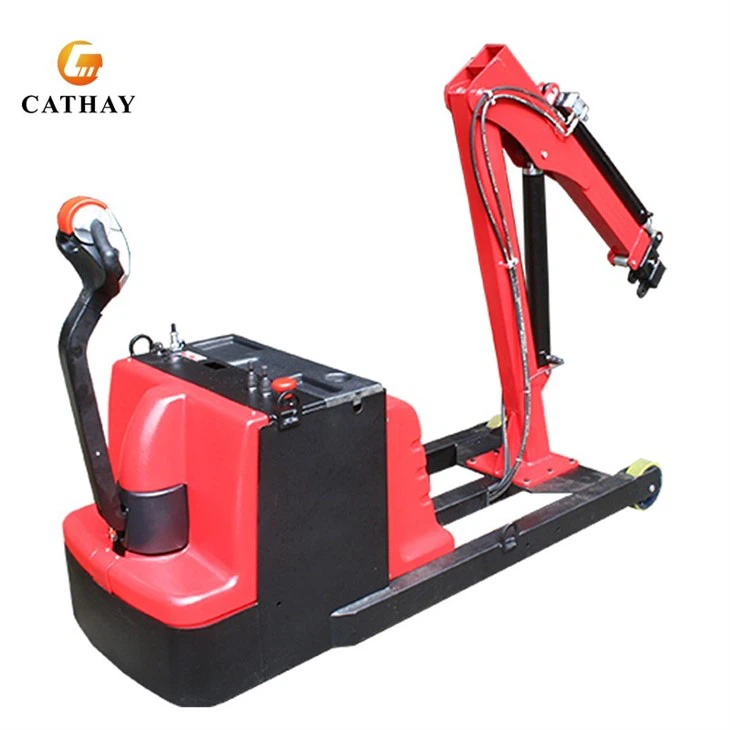

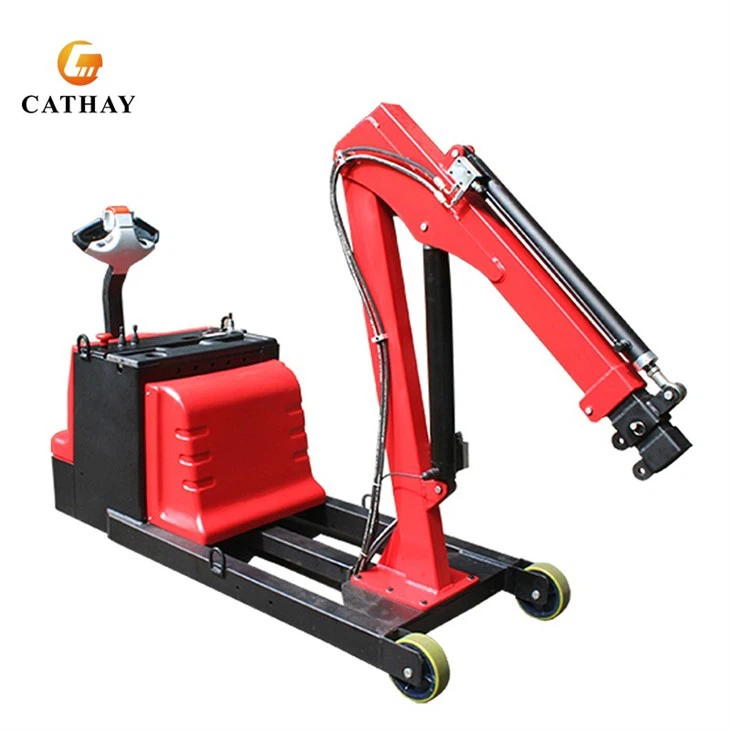

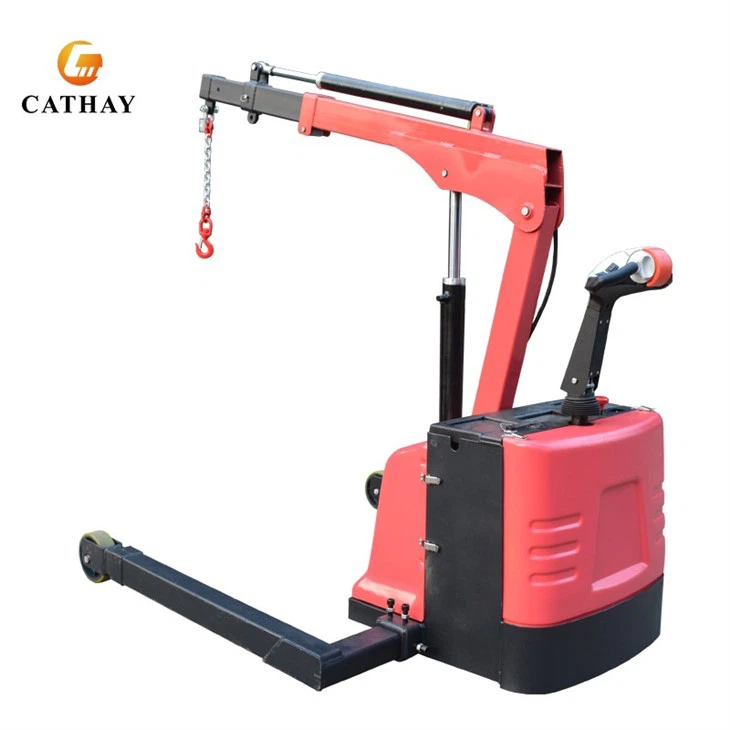

600-1200kg Portable Floor Crane
Meticulously crafted rau revolutionize hnyav lifting hauj lwm nrog unparalleled efficiency thiab kev nyab xeeb nta, no hluav taws xob teb crane boasts ib tug ntau array ntawm lub tshiab Cheebtsam tsim los optimize kev ua tau zoo thiab streamline khiav hauj lwm.
|
Hom qauv |
CSEC-1200 |
CSEC-1200A |
CSEC-700 |
CSEC-900R |
|
Kab rov tav ncav |
1280+610+610 hli |
1280+610+610 hli |
1220+610+610 hli |
1280mm +610mm+610 hli |
|
Load Capacity |
1200 kg |
1200kg (1280mm) |
700kg (1220mm) |
900kg (1280mm) |
|
Load Capacity (theem 1) |
600kg (1280 ~ 1890mm) |
600kg (1280 ~ 1890mm) |
400kg (1220 ~ 1830mm) |
450kg (1280 ~ 1890mm) |
|
Load Capacity (theem 2) |
300kg (1890 ~ 2500mm) |
300kg (1890 ~ 2500mm) |
200kg (1890 ~ 2440mm) |
250KG (1890 ~ 2500 hli) |
|
Max Lifting Qhov siab |
3 570mm |
3 540mm |
3 560mm |
3 180mm |
|
Min Lifting Qhov siab |
9 60mm |
9 35mm |
9 50mm |
14 10mm |
|
Retracted loj (W * L * H) |
1920 * 760 * 1600 hli |
1865 * 1490 * 1570 hli |
2595 * 760 * 1580mm |
2000 * 1854 * 1550 hli |
|
Arm Electric Rotation |
/ |
/ |
/ |
120 degree sab laug / sab xis |
Khoom Paub meej
Nta & qhov zoo:
●Versatile Design:
Crafted nrog lub hauv paus, kem, boom, mus ncig teb chaws mechanism, jacking lub tog raj kheej, thiab ntau dua, CATHAYLIFT Portable Pem Teb Crane yog lub zog ntawm kev ua haujlwm. Nws compact tab sis ruaj khov tsim ua kom seamless maneuverability, ua rau nws ib tug indispensable cuab tam rau loading thiab unloading hnyav khoom nyob rau hauv ntau yam kev lag luam chaw.
● Txhim Kho Mobility:
Nruab nrog hluav taws xob taug kev boom siv los ntawm lub roj teeb muaj peev xwm loj, lub crane no tshem tawm qhov xav tau rau kev siv hluav taws xob sab nraud. Lub roj teeb ua kom lub neej ua haujlwm ntev, ua rau kev siv ntau lub voj voog rau kev ua haujlwm ntev yam tsis muaj kev cuam tshuam. Nrog ob lub log universal thiab ob lub log tsheb uas tsim los ntawm cov khoom siv polyurethane ruaj khov, kev taug kev los ntawm qhov chaw nruj yuav ua haujlwm tsis muaj zog.
● Intelligent Control System:
Lub tshuab hluav taws xob tswj, tuaj ntawm Tebchaws Meskas, ua kom yooj yim thiab elegance hauv kev ua haujlwm. Ib qho kev tswj hwm ib leeg tswj hwm ntau txoj haujlwm, suav nrog kev txuas ntxiv, nqa, thiab txav mus rau pem hauv ntej / rov qab. Lub zog tso saib thaj chaw muab lub sijhawm pom tseeb rau hauv kev siv roj teeb, thaum lub tshuab sib xyaw ua ke ua kom muaj kev nyab xeeb los ntawm kev ceeb toom cov neeg nyob ze thaum lub sijhawm ua haujlwm.
●Unrivaled Safety Features:
Ua ntej kev nyab xeeb, CATHAYLIFT Portable Floor Crane suav nrog cov txheej txheem kev nyab xeeb. Lub khawm nres thaum muaj xwm txheej ceev kom ua tiav kev ua haujlwm tam sim ntawd thaum cov khoom siv tsis ua haujlwm tam sim ntawd, tiv thaiv kev raug mob thiab raug mob. Tsis tas li ntawd, ib cheeb tsam counterweight tau tso cai rau kev hloov kho raws li qhov yuav tsum tau ua, ntxiv dag zog rau kev ua haujlwm kev nyab xeeb thiab ruaj khov.
Kev txiav txim tiag
Cim npe nrov: 600-1200kg Portable Floor Crane
