Tus qauv thauj khoom ntawm CATAHYLIFT hydraulic mobile nqa platform yog 500kg ~ 2000kg, thiab qhov siab tshaj plaws ua haujlwm tuaj yeem ncav cuag 18 meters. High-strength manganese steel qauv, loj ua hauj lwm nto, yuav siv tau los ntawm ntau tus neeg, muaj zog bearing muaj peev xwm, yooj yim dua thiab muaj kev ruaj ntseg ua hauj lwm ntawm heights.
Yog tias cov khoom thauj loj dhau los lossis qhov loj ntawm lub platform, peb tuaj yeem hloov kho nws, thiab xaiv 220V 380V roj teeb lub zog lossis lub zog hluav taws xob sab hauv lub tshuab hluav taws xob raws li qhov xav tau sib txawv, thiab cov khoom siv hluav taws xob tawg tuaj yeem siv rau hauv qhov chaw tshwj xeeb.
Qauv No. | Loading peev (kg) | Lifting qhov siab (m) | Platform Loj (m) | Zuag qhia tag nrho | Lifting Time(s) | Qhov hluav taws xob | Lub cev muaj zog | Log (φ) | Net Nyhav (kg) |
TIAB SA 0406 | 450 | 6 | 1.85*0.88 | 1.95*1.08*1.1 | 55 | TIAB SA 380 | 1.5 | 200 PAB | 800 |
TIAB SA 0407 | 450 | 7.5 | 1.8*1.0 | 1.95*1.2*1.54 | 60 | TIAB SA 380 | 1.5 | 400-8 Roj hmab | 1000 |
TIAB SA 0409 | 450 | 9 | 1.8*1.0 | 1.95*1.2*1.68 | 70 | TIAB SA 380 | 1.5 | 400-8 Roj hmab | 1200 |
TIAB SA 0411 | 450 | 11 | 2.1*1.15 | 2.25*1.35*1.7 | 80 | TIAB SA 380 | 2.2 | 500-8 Roj hmab | 1580 |
SIB 0412 | 450 | 12 | 2.45*1.35 | 2.5*1.55*1.88 | 125 | TIAB SA 380 | 3 | 500-8 Roj hmab | 2450 |
TIAB SA 0414 | 450 | 14 | 2.45*1.35 | 2.5*1.55*2.0 | 165 | TIAB SA 380 | 3 | 500-8 Roj hmab | 2650 |
TIAB SA 1006 | 1000 | 6 | 1.8*1.0 | 1.95*1.2*1.45 | 60 | TIAB SA 380 | 2.2 | 500-8 Roj hmab | 1100 |
TIAB SA 1009 | 1000 | 9 | 1.8*1.25 | 1.95*1.45*1.75 | 100 | TIAB SA 380 | 3 | 500-8 Roj hmab | 1510 |
TIAB SA 1012 | 1000 | 12 | 2.45*1.35 | 2.5*1.55*1.88 | 135 | TIAB SA 380 | 4 | 500-8 Roj hmab | 2700 |
TIAB SA 0316 | 300 | 16 | 2.75*1.5 | 2.85*1.75*2.1 | 173 | TIAB SA 380 | 3 | 500-8 Roj hmab | 3200 |
Cov Khoom Paub meej
Qhov zoo:
1. 45 # round steel, quenched thiab tempered, nrog loj bearing peev xwm; tag nrho tsis siv neeg tshuab vuam, ruaj qauv thiab zoo nkauj tsos
2. Qhov siab ntawm lub guardrail yog mus txog 1m, uas yog detachable thiab yooj yim rau siv.
3. Sino-tawm txawv teb chaws sib koom ua ke kev sib koom ua ke nqa twj tso kua mis chaw nres tsheb, kev ua haujlwm ruaj khov, lub zog muaj zog thiab kev saib xyuas yooj yim
4. Folding ceg sawv, zoo nkauj, siv tau yooj yim, yooj yim rau theem, ruaj khov thiab ruaj khov
5. Cov log tsheb zoo pneumatic, cov kabmob ruaj khov, ua haujlwm zoo thiab ruaj khov.
6. Tag nrho CNC txiav, high-precision steel phaj dabtsi yog khoov, txhaj tshuaj blasting thiab xim kho

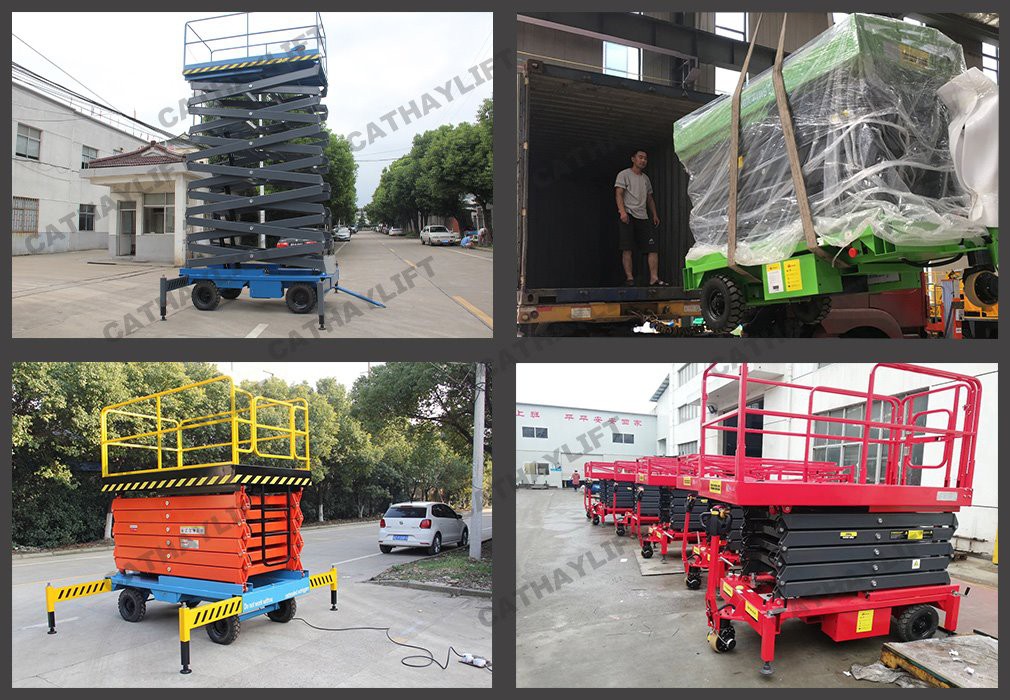

Kev txiav txim tiag:
Cim npe nrov: txiab lift
