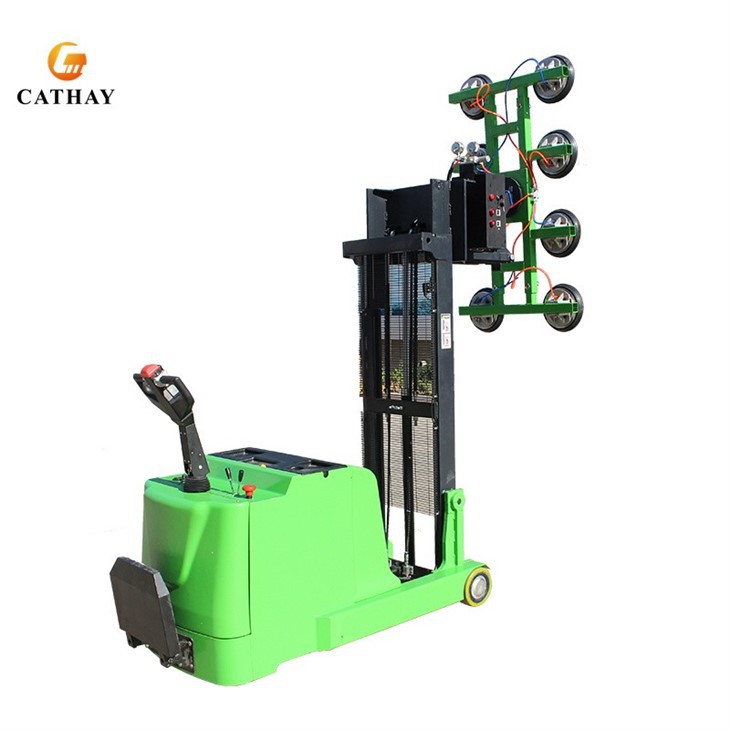

Self-Propelled Vacuum iav Lifter

Self-Propelled Nqus Iav Lifter, ntau yam cuab yeej engineered rau seamless tuav ntawm ntau yam ntaub ntawv xws li ntawv hlau thiab iav. Cov cuab yeej tshwj xeeb no boasts tsis siv neeg siab tswj, kev saib xyuas kev nyab xeeb, thiab kev tswj hwm ntau yam, kom ntseeg tau yooj yim, ua haujlwm tau zoo, thiab qhov tseem ceeb tshaj, kev nyab xeeb hauv kev ua haujlwm. Siv cov tshuab nqus tsev siab tshaj plaws, nws ruaj ntseg nqa thiab thauj khoom, ua kom yooj yim thauj khoom thiab tshem tawm cov txheej txheem nrog precision. Los ntawm cov chaw lag luam mus rau qhov chaw tsim kho, lub tshuab nqa no muab cov kev daws teeb meem txhim khu kev qha, txhawb cov neeg siv los daws ntau yam ntaub ntawv nrog kev yooj yim thiab kev ntseeg siab. Ua kom muaj txiaj ntsig thiab kev nyab xeeb nrog Lub Tshuab Nqus Tsev Ua Haujlwm Tus Kheej Lifter.

Xa kev nug

Tsham tam sim no

Hauj lwm lawm

Self-Propelled Vacuum iav Lifter

vacuum lifter for steel plate 1

Qauv	XC-H400(4)	XC-H400(6)	XC-H600(6)	XC-H600(8)
Rated Load Capacity	400 kgs		600 kgs
Safe Load Capacity	200 kgs		300 kgs
Lifting Qhov siab	1500 hli		1500 hli
QTY ntawm Suction Caps	4pcs ib	6 pcs	6 pcs	8pcs ib
Txoj kab uas hla	Ø 300 mm		Ø 300 mm
Phaj Loj (customized)	1220 x 1830 mm		2440 x 1830 mm
Load Center	650 hli		9 50mm
Tsav Tsav	24V/500W		24V/700W
Hydraulic Tsav	24V/2000W		24V/2000W
Roj teeb	2 x 12V / 70Ah		2 x 12V / 100Ah
Charger	24V/10A		24V/15A

Qauv	XC-H800(8)	XC-H800 (10)	XC-H800(8)	XC-H800 (10)
Rated Load Capacity	8 00kgs		8 00kgs
Safe Load Capacity	400 kgs		400 kgs
Lifting Qhov siab	1500 hli		2500 hli
QTY ntawm Suction Caps	8pcs ib	10 pcs	8pcs ib	10 pcs
Txoj kab uas hla	Ø 300 mm		Ø 300 mm
Phaj Loj (customized)	3660 x 2440 mm		3660 x 2440 mm
Load Center	1250 hli		1250 hli
Tsav Tsav	24V/900W		24V/900W
Hydraulic Tsav	24V/2000W		24V/2000W
Roj teeb	2 x 12V / 160Ah		2 x 12V / 160Ah
Charger	24V/20A		24V/20A

Cov Khoom Paub meej

vacuum lifter for steel plate 2

vacuum lifter for steel plate 4

Vim li cas thiaj xaiv peb lub tshuab nqus tsev nqus tsev vacuum?

Kev nyab xeeb: Nws tus kheej-propelled mechanism txo qhov kev xav tau ntawm kev tuav tuav, txo qhov kev pheej hmoo ntawm kev raug mob thiab kev raug mob cuam tshuam nrog kev nqa cov iav hnyav. Cov neeg ua haujlwm tuaj yeem tswj tau lub lifter remotely, ua kom lawv tawm ntawm kev puas tsuaj thaum ua haujlwm.
Efficiency: Tus kheej-propelled feature tso cai rau nrawm thiab meej maneuverability, ua kom yooj yim rau kev thauj cov iav panels los ntawm qhov chaw nruj thiab ib puag ncig cov teeb meem. Qhov no txhim kho kev ua haujlwm tag nrho ntawm kev ua haujlwm, ua rau kom ua tiav cov haujlwm sai dua thiab cov haujlwm.
Versatility: Hom lifter no yog tsim los tswj ntau hom thiab qhov ntau thiab tsawg ntawm iav panels, muab versatility hauv daim ntawv thov. Txawm hais tias nws yog lub qhov rais lag luam loj, cov iav tsis muaj zog, lossis cov vaj huam sib luag zoo li qub, lub lifter tuaj yeem ruaj ntseg nqa thiab thauj lawv yooj yim.
Productivity: Los ntawm kev txhim kho cov txheej txheem tuav iav thiab txo qhov xav tau ntawm kev siv tes ua haujlwm, tus kheej lub tshuab nqus tsev iav lifter ho txhim kho cov khoom tsim tau. Nws tso cai rau cov neeg ua haujlwm ua tiav cov haujlwm sai dua thiab ua haujlwm tau zoo, yog li ua kom tag nrho cov khoom tsim tawm thiab kev ua haujlwm dhau los.
Tus nqi-zoo: Txawm hais tias thawj zaug peev yuav siab dua, kev txuag nyiaj mus sij hawm ntev yog qhov tseem ceeb. Kev txo nqi zog, txo qis kev pheej hmoo ntawm kev puas tsuaj rau cov iav vaj huam sib luag, thiab cov khoom tsim tau nce ntxiv ua rau muaj txiaj ntsig zoo rau kev ua haujlwm zoo dua nyob rau lub sijhawm.

vacuum lifter for steel plate 3

Yuav ua li cas tswj tus kheej-Propelled Vacuum iav lifter.

Kev tshuaj xyuas tsis tu ncua: Ua niaj hnub saib xyuas ntawm lub lifter, xyuas seb puas muaj cov tsos mob ntawm hnav thiab tsim kua muag, puas, los yog xoob Cheebtsam. Ua tib zoo mloog rau lub khob nqus dej, hydraulic system, tswj, thiab kev ua haujlwm zoo.
Kev huv huv: Khaws lub lifter kom huv si ntawm cov av, khib nyiab, thiab lwm yam kab mob uas yuav cuam tshuam rau nws txoj haujlwm. So ntawm qhov chaw tsis tu ncua thiab tshem tawm cov av los yog grime. Xyuas kom meej tias cov khob nqus dej tsis muaj plua plav thiab cov khib nyiab kom ua haujlwm zoo.
Hydraulic System Maintenance: Txheeb xyuas cov kua dej hydraulic tsis tu ncua thiab sau cov khoom raws li qhov xav tau nrog cov roj hydraulic (HL46). Tshawb xyuas hydraulic hoses thiab kev sib txuas rau cov dej xau, tawg, lossis puas. Hloov cov khoom puas tsuaj tam sim ntawd.Ua raws cov chaw tsim khoom pom zoo rau kev hloov roj hydraulic, feem ntau txhua 600-800 teev ntawm kev ua haujlwm.
Lub roj teeb Maintenance: Yog hais tias lub lifter yog roj teeb, xyuas kom meej tias cov roj teeb tau them tsis tu ncua thiab tswj raws li cov chaw tsim khoom cov lus qhia. Tshawb xyuas cov cim qhia ntawm corrosion ntawm cov roj teeb terminals thiab ntxuav lawv yog tias tsim nyog.
Kev kuaj ua haujlwm: Tsis tu ncua kuaj cov haujlwm ntawm lub lifter, suav nrog kev nqa, txo qis, thiab kev ua haujlwm. Xyuas kom meej tias tag nrho cov kev tswj tau ua haujlwm kom raug thiab tsis muaj suab nrov txawv txav lossis kev vibrations thaum ua haujlwm.
Kev cob qhia: Muab kev cob qhia kom raug rau cov neeg ua haujlwm ntawm kev siv thiab tu lub lifter kom raug. Xyuas kom lawv nkag siab txog cov txheej txheem kev nyab xeeb, cov txheej txheem ua haujlwm, thiab yuav ua li cas txheeb xyuas cov teeb meem uas yuav tshwm sim.
Cov ntaub ntawv: Khaws cov ntaub ntawv ntxaws ntxaws ntawm kev saib xyuas kev ua ub no, kev tshuaj xyuas, thiab txhua yam kev kho ntawm lub lifter. Cov ntaub ntawv no tuaj yeem pab txheeb xyuas cov qauv ntawm kev hnav thiab muab kev nkag siab rau tus neeg nqa khoom lub cev tag nrho.
Kev Pabcuam Kev Ua Haujlwm: Teem sijhawm soj ntsuam cov kws tshaj lij thiab kev pabcuam los ntawm cov kws tshaj lij tsim nyog. Lawv tuaj yeem ua qhov kev txheeb xyuas qhov tob thiab daws txhua qhov teeb meem ua ntej lawv nce ntxiv.
